Glass Tube Flowmeters
E-Z Tube Change With Magnifying Front Shield

FL-5000

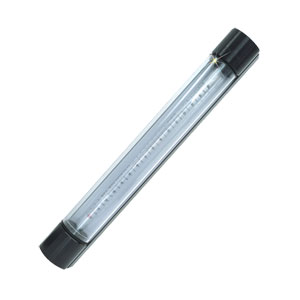

Glass Tube Flowmeters E-Z Tube Change With Magnifying Front Shield | FL-5000

See All Models Below

1 year warranty
  • Standard Millimeter Scales with Flow Curves
  • E-Z Change Design Allows Quick Interchangeability of Tube Assemblies
  • Glass Tube Allows Compatibility with Most Gases and Fluids
  • Rotating Lens Allows 180° View with Magnification

Description

The FL-5000 series has been discontinued. Please see the FL-3200_FL-3500 Series as a possible alternative or contact our {your dept.} Engineering department.

FL-5000 series variable area flow meters are supplied standard with a 9-turn cartridge valve. Optionally available are units without a valve or with a 16-turn non-rising stem precision valve.

SPECIFICATIONS
Accuracy:
   65 mm (2.5"): scale ±5%
   150 mm (5.9"): scale ±3%
Back Plate: Aluminum
Standard Seals: Aluminum with Buna; stainless steel with FKM
Tube: Borosilicate glass
Pressure: 200 psi
Temperature: 93°C (200°F)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
FL-5581G
Consult Sales
Availability:


23740 cc/min air, 565 cc/min water
