 - Discontinued 4 Input Thermometer and Data Logger with USB Interface

HH1384

4 Input Thermometer and Data Logger | HH1384

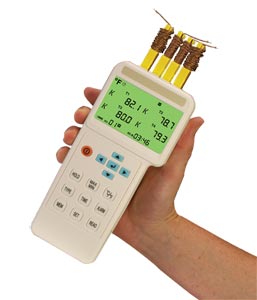

4 Input Thermometer and Data Logger

371,00 HH1384

1 year warranty CE
  •  - Discontinued Isolated Input Protection of 350 Vp-p Between any Two Inputs
  • Highly Accurate Thermometer with Thermocouple K, J, E, T, R, S, N, L, U, B, C Types
  • USB Interface with Windows® Software
  • 4 Input Function T1/T2/T3/ T4 Temperature Display
  • Programmable Hi–Lo Alarm for 4 Inputs
  • Display MAX, MIN and MAX–MIN Values of 4 Inputs
  • Independent Input Set-Up (Type of Thermocouple, Hi–Lo Alarm Values)
  • Memory and Read Function (99 Sets) 512 KB Auto Data Logging Capacity

Description

Click if you want to know more about data loggers.

The HH1384 series has been discontinued. Please see the HH309A as a possible alternative or contact our Sales department.

This instrument is a digital 4 input thermometer and data logger that works with any K, J, E, T, R, S, N, L, U, B and C Type thermocouple temperature sensors.

Environment Conditions
Altitude: Up to 2000 m (6562')
Relatively Humidity: 80% max
Operation Ambient: 0 to 50°C

SPECIFICATIONS
Power Supply:
6 "AA" batteries (included) or DC 9V AC adaptor
Battery Life: Approx. 55 hours (alkaline battery)
Auto Power Off: 5, 15 or 30 minutes (if no key is pressed)
Low Battery Indicator: The indicator is displayed when the battery voltage drops below the operating voltage
Measurement Rate: One time per 2 seconds
Weight: 405 g (batteries included)
Dimension: 185 L × 73 W × 53 mm D
Operating Temperature: 0 to 50ºC
Humidity: Below 80% RH
Storage Temperature: -10 to 60ºC
Humidity: Below 70% RH
Temperature Coefficient: 0.01% of reading ±0.1°C per °C (0.2°F per °F) outside the specified 18 to 28°C
Windows Compatibility: Up to Windows 8
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
HH1384
€371,00
Availability: In Stock

4-channel thermometer and data logger
Accessories
Quick Ship
HH1384-ADAPTOR-UK
Consult Sales
Availability:


AC power adaptor. 240 Vac with 3-pin UK plug
Quick Ship
SC-GG-K-30-36
€20.00
Availability: In Stock

Spare Type K thermocouple
All amounts shown in EUR
Note: Comes complete with 6 "AA" alkaline batteries, USB cable, software CD, carrying case, four Type K thermocouples (1 per channel) and operator's manual.
