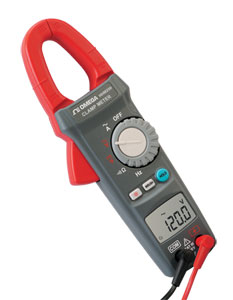

True RMS Clamp Meter

HHM250

Clamp Meter

See All Models Below

PLACE ORDER

4-Digit LCD
Measures Current to 660 AC
Measures Voltage to 600 Vac
Voltage Frequency Measurements to 100 Khz
Current Frequency Measurements to 30 Khz
Inrush Mode to Measure and Hold Motor Start Up Current

General Test and Measurement Instruments - View related products

Description

The HHM250 is a clamp on multifunction meter that provides high accuracy and reliability in a low cost portable package. The clamp allows for measurement of AC current to 660 amps and AC voltage to 600 volts. Ideal for monitoring electrical power sources to troubleshoot or evaluate. Measures RMS voltage and current frequency with precision accuracy.

SPECIFICATIONS
Numerical Display: 4-digit liquid crystal (LCD), maximum reading 6600
Low Battery Indication: Battery image display
Sampling Rate: 3x/second
Power Source: Two 1.5V "AAA" batteries (included)
Auto Power Off: 15 minutes
Operating Temperature and Humidity: 0 to 40°C (32 to 104°F); <70% RH
Storage Temperature and Humidity: -10 to 60°C (14 to 140°F); <80% RH
Jaw Opening Diameter: Approx 25 mm (1")
Dimensions: 209 H x 74 W x 36 mm D (8.2 x 2.9 x 1.4")
Weight: Approx. 255 g (9.1 oz)
Accessories (Included): Carrying case, two 1.5V "AAA" batteries, test leads and operator’s manual

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

HHM250

Consult Sales

Availability:

RMS clamp meter

† All amounts shown in EUR
Note: Comes complete with carrying case, two 1.5V "AAA" batteries, test leads and operator's manual.
