DialTemp^TM, Bi-Metal Stem Thermometers Models J-() and L-(), 3" and 5" Heads

J and L Series

^€182,54 J-0-200F-4-1/2

PLACE ORDER

Head May Be Tilt- Adjusted Through a Full 90° Angle
All Stainless Steel Welded Construction
External Recalibration
Rust and Corrosion-Proof, Leakproof, Hermetically Sealed
Sensitive Bi-Metal Element Silicone Dampened for Minimum Pointer Vibration and Maximum Heat Transfer
Accuracy – 1% of Range
Use of Thermowell Is Recommended for Pressure Applications
Overrange Protection – 50% Up to 500°F
Model J Features 5 Inch Head
Model L Features 3 Inch Head

Glass Bulb and DialTemp™ Thermometers - View related products

Description

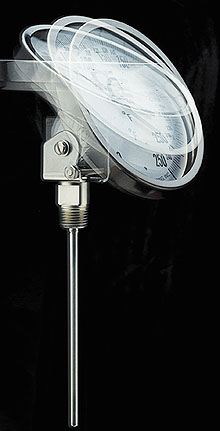

The Model J DialTemp™ bi-metal thermometer features a swivel neck which allows the large 5" dial to be set at any angle within its full 90° tilt range. In addition, the head can also be turned through a full 360° range. The extent of the tilt and rotational adjustment are shown in the diagram below. This features solves many problems, and improves dial readability for many installations. With the Model J, readability is simple – just set the head angle to the position where the user can see it best.

These rugged thermometers are manufactured from stainless steel welded construction. The 1/4" diameter probe is supplied with a 1/2" NPT fitting, making Model J thermometers compatible with standard thermowell designs.

For available stem lengths, ranges, and configurations please review the Product Spec Sheet . For custom stem lengths, consult the Sales Department.

Ranges and °Divisions

Fahrenheit
Range	Div.
-100-100°F	2°
-80-120°F	2°
-40-160°F	2°
-20-120°F	2°
*0-100°F	1°
*25-125°F	1°
0-140°F	2°
0-150°F	1°
0-200°F	2°
0-220°F	2°
0-250°F	2°
0-300°F	2°
20-240°F	2°
-50-300°F	5°
50-300°F	5°
50-400°F	5°
50-500°F	5°
50-550°F	5°
50-750°F	10°
100-800°F	10°
150-750°F	10°
200-1000°F	10°
-100-200°F	2°
-70-150°F	2°
200-300°F	2°
300-400°F	2°

Celsius
Range	Div.
-50-200°C	2°
-50-100°C	2°
-50-50°C	1°
-40-70°C	1°
-40-160°C	2°
*-30-30°C	1°
-20-120°C	2°
-10-110°C	1°
*0-50°C	1/2°
0-100°C	1°
0-150°C	1°
0-200°C	2°
0-300°C	2°
0-400°C	5°
100-500°C	5°
-80-220°C	2°
-20-220°C	2°
*0-30°C	1/2°
*0-60°C	1°
0-250°C	2°
50-450°C	5°
100-550°C	5°

Dual Range
Range	Div.	Range	Div.
-50-210°F	5°	-50-100°C	2°
-100-100°F	2°	-70-40°C	1°
*25-125°F	1°	-5-50°C	1°
-40-160°F	2°	-40-70°C	1°
0-200°F	2°	-10-90°C	1°
0-250°F	2°	-20-120°C	2°
50-300°F	2°	10-150°C	2°
50-500°F	5°	10-260°C	5°
50-550°F	5°	10-290°C	5°
150-750°F	10°	70-400°C	5°
200-1000°F	10°	100-500°C	5°
0-150°F	1°	-20-70°C	1°
20-240°F	1°	-10-115°C	2°
50-400°F	5°	10-200°C	5°

* Minimum Stem Length - 4"

Examples of Part Numbers shown below. To order a specific model not in the To Order box
Click Here to Order BY Part Number.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Model X - Other configurations may be available please consult sales.

J--50-200C-2 1/2-1/2

€179.02

Availability: 6 weeks

J Series, -50-200C Temperature Range, 2.5in. Stem Length, 1/2 NPT Mounting Bushing

J-0-250F-21/2-1/2

€179.02

Availability: 6 weeks

J Series, 0-250F Temperature Range, 2.5in. Stem Length, 1/2 NPT Mounting Bushing

J-0-250F-4-1/2

€179.02

Availability: 6 weeks

J Series, 0-250F Temperature Range, 4 in. Stem Length, 1/2 NPT Mounting Bushing

J-50-500F-4-1/2

€209.82

Availability: 6 weeks

J Series, 0-500F Temperature Range, 4 in. Stem Length, 1/2 NPT Mounting Bushing

J--40-160F-24-1/2

€236.79

Availability: 6 weeks

J Series, -40 to 160F Temperature Range, 24in. Stem Length, 1/2 NPT Mounting Bushing

Model L - Other configurations may be available please consult sales.

Order By Part Number

Part Number

Qty

Part Number

Qty

† All amounts shown in EUR
Note: Other temperature ranges may be available please consult sales.
