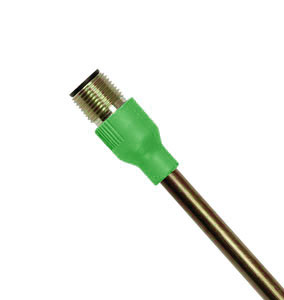

Thermocouple Probes with M12 Moulded Connectors

M12M Series

M12 thermocouple probes | M12M Series

M12 thermocouple probes

39,49 M12MKIN-M3-U-250

  • Available in Two Thermocouple Types:
    Type "J" Thermocouple with 304 Stainless Steel Sheath
    Type "K" Thermocouple with Inconel 600 Sheath
  • Thermocouple Junction Insulated from Probe Sheath
  • -50 to 90°C M12 Connector Temperature Range
  • Available with 6mm & 3mm Diameter Probe Sheaths
  • Standard Probe Lengths of 250mm, 500mm 1000mm and 1500mm
  • All Sensors are Supplied with A-Coded M12 Connectors with Thermocouple Compensated Pins
Thermocouples - View related products

Description

These thermocouple probes provide a convenient method for measuring temperature in your process. The thermocouple compensated M12 connector provides a quick and reliable means for connecting the sensor to your monitoring or control equipment using a thermocouple compensated M12 extension cable.

The M12 Series thermocouple probes are available as Type K thermocouples with Inconel 600 sheaths, or as Type J thermocouples with 304 Stainless Steel Sheaths. Standard probe diameters are 3mm and 6mm, with standard lengths of 250, 500, 1000 and 1500 mm. These thermocouple sensors can also be requested in other lengths as required.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Type K Thermocouples
M12MKIN-M3-U-250
39.49
Availability: 1 week

Type K Thermocouple, insulated junction, Inconel Sheath. 3mm dia. 250mm long
M12MKIN-M3-U-500
45.26
Availability: 1 week

Type K Thermocouple, insulated junction, Inconel Sheath. 3mm dia. 500mm long
M12MKIN-M3-U-1000
59.59
Availability: 7 weeks

Type K Thermocouple, insulated junction, Inconel Sheath. 3mm dia. 1m long
M12MKIN-M3-U-1500
74.71
Availability: 7 weeks

Type K Thermocouple, insulated junction, Inconel Sheath. 3mm dia. 1.5m long
M12MKIN-M6-U-250
49.35
Availability: In Stock

Type K Thermocouple, insulated junction, Inconel Sheath. 6mm dia. 250mm long
M12MKIN-M6-U-500
68.02
Availability: 10 weeks

Type K Thermocouple, insulated junction, Inconel Sheath. 6mm dia. 500mm long
M12MKIN-M6-U-1000
101.47
Availability: 7 weeks

Type K Thermocouple, insulated junction, Inconel Sheath. 6mm dia. 1m long
M12MKIN-M6-U-1500
133.71
Availability: 10 weeks

Type K Thermocouple, insulated junction, Inconel Sheath. 6mm dia. 1.5m long
Type J Thermocouples
M12MJSS-M3-U-250
38.79
Availability: 10 weeks

Type J Thermocouple, insulated junction, 304 SS sheath. 3mm dia. 250mm long
M12MJSS-M3-U-500
44.07
Availability: 1 week

Type J Thermocouple, insulated junction, 304 SS sheath. 3mm dia. 500mm long
M12MJSS-M3-U-1000
54.99
Availability: 9 weeks

Type J Thermocouple, insulated junction, 304 SS sheath. 3mm dia. 1m long
M12MJSS-M3-U-1500
65.17
Availability: 9 weeks

Type J Thermocouple, insulated junction, 304 SS sheath. 3mm dia. 1.5m long
M12MJSS-M6-U-250
45.46
Availability: 9 weeks

Type J Thermocouple, insulated junction, 304 SS sheath. 6mm dia. 250mm long
M12MJSS-M6-U-500
56.76
Availability: 1 week

Type J Thermocouple, insulated junction, 304 SS sheath. 6mm dia. 500mm long
M12MJSS-M6-U-1000
80.34
Availability: 9 weeks

Type J Thermocouple, insulated junction, 304 SS sheath. 6mm dia. 1m long
M12MJSS-M6-U-1500
99.76
Availability: 1 week

Type J Thermocouple, insulated junction, 304 SS sheath. 6mm dia. 1.5m long
All amounts shown in EUR
Ordering Example: (1) M12MKIN-M6-U-250 Type K Thermocouple with Inconel 600 Sheathed, 6mm Diameter by 250mm Long Probe with Moulded M12 Connector, €49.35
