NEMA Motor Starters

N101 Series

NEMA Motor Starters | N101 Series

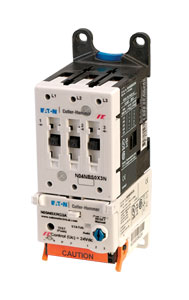

NEMA Motor Starters

370,00 N101BS0D3A

  • 24 Vdc Control Power: Safe, Reliable Global Standard
  • Unique Pulse Width Modulated (PWM) Coil Controller Minimizes Coil Power Consumption
  • Microprocessor-Based Control
  • Phase Loss and Current Unbalance Protection
  • Ambient Compensated Overload
  • Motor Temperature and Power-Up Protection with Thermal Memory
  • Easily Accessible Mounting Feet for Panel Mounting
  • LED Status Indication: Trip, Trip Class, Motor Thermal State, Reset, Overload State
  • Unique "Alarm Without Trip" Option for Critical Must Run Applications
  • -40 to 65°C (-40 to 149°F) Operating Temperature
  • Wide 3.2:1 Current Adjustment Range
  • Exclusive Internal 24-bit Floating Point Math Calculations with RMS Calibrated Current Measurement
  • Meets or Exceeds Global Standards for EMC (Electromagnetic Compatibility) Immunity and Emissions
  • IP20 Finger Protection
  • Motor Tuning Thermal Utilization Indication
  • Manual, Automatic or Remote Reset
  • DIN Rail Mountable, Size 00 to 2
  • Solid-State Alarm Output Indication

Description

The Cutler-Hammer® Electro-Mechanical Motor Starter consists of an electro-mechanical contact block or contactor and electromechanical solid-state overload relay as a full voltage non-reversing (FVNR) device. Size 00 to 2 motor starters are factory assembled.

SPECIFICATIONS
Dimensions:
    Size 00 and 0: 45 W x 127 H x 63 mm D (1.8 x 5.0 x 2.5")
    Size 1: 54 W x 138 H x 63 mm D (2.1 x 5.4 x 2.5")
    Size 2: 76 W x 150 H x 79 mm D (3.0 x 5.9 x 3.1")
Mounting Hole Spacing:
    Size 00 and 0: 33.8 W x 117.3 mm H (1.33 x 4.62")
    Size 1: 37 W x 128 mm H (1.46 x 5.04")
    Size 2: 24 W x 73 mm H (0.94 x 2.87")
Weight:
    Size 00 and 0: 0.40 kg (0.9 lb)
    Size 1: 0.53 kg (1.2 lb)
    Size 2: 1.32 kg (2.9 lb)
Mechanical Operating Rate(No Load Condition):
    Size 00 and 0: 3/sec
    Size 1: 3/sec
    Size 2: 2/sec
Mechanical Life (Operations):
    Size 00 and 0: 10,000,000
    Size 1: 10,000,000
    Size 2: 8,000,000
Humidity: 95% non-condensing
Insulation Voltage (Ui): 690V
Impulse Withstand Voltage (Uimp): 6 kV
Coil Voltage (Nominal): 24 Vdc
Coil Operating Voltage Range: 20 to 28 Vdc
Operating Temperature: -40 to 65°C (40 to 149°F)
Storage Temperature: -50 to 80°C (-58 to 176°F)
Shock/Vibration: 15G/5G
Pull-In Time @ 24V—No Debounce:
    Size 00 and 0: 15 mS
    Size 1: 15 mS
    Size 2: 25 mS
Pull-In Time @ 24V—With Debounce:
    Size 00 and 0: 75 mS
    Size 1: 80 mS
    Size 2: 88 mS
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
N101BSAA3A
375,00
Availability: 1 week

Full voltage non-reversing, size 00 starter with 0.25 to 0.8 A overload range
Quick Ship
N101BSAB3A
Consult Sales
Availability:


Full voltage non-reversing, size 00 starter with 0.59 to 1.9 A overload range
Quick Ship
N101BSAC3A
Consult Sales
Availability:


Full voltage non-reversing, size 00 starter with 1.4 to 4.4 A overload range
Quick Ship
N101BS0C3A
Consult Sales
Availability:


Full voltage non-reversing, size 0 starter with 1.4 to 4.4 A overload range
Quick Ship
N101BS0D3A
370.00
Availability: 1 week

Full voltage non-reversing, size 0 starter with 2.8 to 9.0 A overload range
Quick Ship
N101BS0G3A
Consult Sales
Availability:


Full voltage non-reversing, size 0 starter with 6.3 to 20.0 A overload range
Quick Ship
N101CS1B3A
Consult Sales
Availability:


Full voltage non-reversing, size 1 starter with 0.59 to 1.9 A overload range
Quick Ship
N101CS1C3A
Consult Sales
Availability:


Full voltage non-reversing, size 1 starter with 1.4 to 4.4 A overload range
Quick Ship
N101CS1D3A
Consult Sales
Availability:


Full voltage non-reversing, size 1 starter with 2.8 to 9.0 A overload range
Quick Ship
N101CS1F3A
Consult Sales
Availability:


Full voltage non-reversing, size 1 starter with 5.0 to 16.0 A overload range
Quick Ship
N101CS1H3A
Consult Sales
Availability:


Full voltage non-reversing, size 1 starter with 8.4 to 27.0 A overload range
Quick Ship
N101DS2H3A
Consult Sales
Availability:


Full voltage non-reversing, size 2 starter with 8.4 to 27.0 A overload range
Quick Ship
N101DS2K3A
Consult Sales
Availability:


Full voltage non-reversing, size 2 starter with 14.0 to 45.0 A overload range
All amounts shown in EUR
Note: Comes complete with wiring diagram and quick set-up guide.
