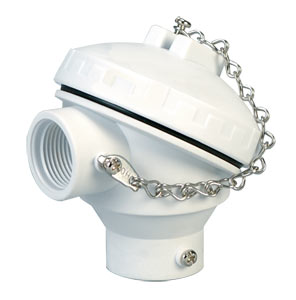

Connection Heads for Hygienic Applications

NB Hygienic Series

Connection Heads for Hygienic Applications | NB Hygienic Series

Connection Heads for Hygienic Applications

38,74 NB9W-0

  • Stainless Steel, Aluminium, and Polypropylene
  • Available Without Terminal Blocks or with 2 or 4 Terminals
Thermowells and Head and Well Assemblies - View related products

Description

Model No. Material Tube Entry Wire Entry
NB2 Aluminium ½ NPT ½ NPT
NB9W White
Polypropylene
½ NPT ¾ NPT
NB13 316 SS ½ NPT ½ NPT
NB14 316 SS ¼ NPT ¼ NPT
NB15 316 SS ½ NPT ½ NPT
NB16W White
Polypropylene
½ NPT ½ NPT
Special connection heads are available for sanitary and hygienic applications. Select from Aluminium, White polypropylene or 316 SS, these heads are available with or without a ceramic terminal block. Terminal blocks feature either two or four terminals for fast connections.

Please refer to the specification sheet above for photographs of the individual head types.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Type NB2 Aluminium Head
NB2-0
38.74
Availability: 5 weeks

Aluminium, ½ NPT Tube Entry, ½ NPT Wire Entry, No internal terminals
NB2-2
41.39
Availability: 1 week

Aluminium, ½ NPT Tube Entry, ½ NPT Wire Entry, 2 terminals (CH-49)
NB2-4
47.15
Availability: 1 week

Aluminium, ½ NPT Tube Entry, ½ NPT Wire Entry, 4 terminals (CH-50)
Type NB9W White Polypropylene Head
NB9W-0
38.74
Availability: 5 weeks

Polypropylene, ½ NPT Tube Entry, ¾ NPT Wire Entry, No internal terminals
NB9W-2
42.88
Availability: 5 weeks

Polypropylene, ½ NPT Tube Entry, ¾ NPT Wire Entry, 2 terminals (CH-73)
NB9W-4
44.63
Availability: 5 weeks

Polypropylene, ½ NPT Tube Entry, ¾ NPT Wire Entry, 4 terminals (CH-74)
Type NB13 316 SS Head
NB13-0
128.51
Availability: 5 weeks

316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, No internal terminals
NB13-2
135.64
Availability: 5 weeks

316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, 2 terminals (CH-73)
NB13-4
137.53
Availability: 5 weeks

316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, 4 terminals (CH-74)
Type NB14 316 SS Head
NB14-0
98.47
Availability: 5 weeks

316 stainless steel, ¼ NPT Tube Entry, ¼ NPT Wire Entry, No internal terminals
NB14-2
102.98
Availability: 2 weeks

316 stainless steel, ¼ NPT Tube Entry, ¼ NPT Wire Entry, 2 terminals (CH-73)
NB14-4
105.99
Availability: 2 weeks

316 stainless steel, ¼ NPT Tube Entry, ¼ NPT Wire Entry, 4 terminals (CH-74)
Type NB15 316 SS Head
NB15-0
100.41
Availability: 5 weeks

316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, No internal terminals
NB15-2
105.01
Availability: 5 weeks

316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, 2 terminals (CH-73)
NB15-4
108.07
Availability: 5 weeks

316 stainless steel, ½ NPT Tube Entry, ½ NPT Wire Entry, 4 terminals (CH-74)
Type NB16W White Polypropylene Head
NB16W-0
50.22
Availability: 1 week

Polypropylene, ½ NPT Tube Entry, ½ NPT Wire Entry, No internal terminals
NB16W-2
54.11
Availability: 5 weeks

Polypropylene, ½ NPT Tube Entry, ½ NPT Wire Entry, 2 terminals (CH-73)
NB16W-4
55.54
Availability: 5 weeks

Polypropylene, ½ NPT Tube Entry, ½ NPT Wire Entry, 4 terminals (CH-74)
Terminal Blocks for Connection Heads
CH-49
11.53
Availability: 1 week

Ceramic block, 2 terminals, for NB2 head
CH-50
10.86
Availability: 1 week

Ceramic block, 4 terminals, for NB2 head
CH-73
10.39
Availability: 5 weeks

Ceramic block, 2 terminals, for NB13 head
CH-74
12.29
Availability: 5 weeks

Ceramic block, 4 terminals, for NB13 head
CH-73/M12
€6.83
Availability: 5 weeks

Ceramic block, 2 terminals, for NB9W, NB14, NB15 and NB16W heads
CH-74/M12
12.63
Availability: 5 weeks

Ceramic block, 4 terminals, for NB9W, NB14, NB15 and NB16W heads
All amounts shown in EUR
