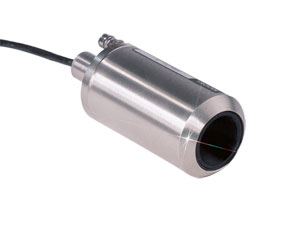

The OS36-10 Series provides precise temperature control for optimum product quality and maximum throughput. Like conventional thermocouples, all IR thermocouples do not require external power and plug into your controller, PLC, datalogger, recorder or data acquisition system. They simply measure temperature without contact. The internal air purge passages provide a highly efficient method of maintaining optical cleanliness in harsh environments.
Example of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models. For complete product specifications see the detailed data sheet in the related section below.
† All amounts shown in EUR Note: Polynomials available upon request. 98.6F 16 to 39°C/60 to 102°F Stripped leads are standard. To order with GMP subminiature low-noise thermocouple connector pair, add suffix “-GMP” to model no. and add $12 to price. To order with GST standard size low-noise thermocouple connector pair, add suffix “-GST” to model no. and add $12 to price. (OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$) Ordering Example: (1) OS36-10-K-140F IR thermocouple sensor type K, with 26 to 82° C (80 to 180°F) range, €535,00 plus (1) OS36-10-K-140F IR thermocouple sensor type K, with 26 to 82° C (80 to 180°F) range, €535,00, €535,00 + 535,00 = €1.070,00
Part Number Builder
Build Your Part Number Below
Temperature Range select from: 80F for 10 to 49°C/50 to 120°F 140F for 25 to 80°C/80 to 180°F 180F for 70 to 104°C/160 to 220°F 240F for 95 to 130°C/200 to 270°F 280F for 125 to 155°C/260 to 310°F 340F for 145 to 175°C/290 to 350°F 440F for 170 to 250°C/340 to 480°F
Note: All combinations may not be valid, check spec sheet for valid part numbers.
