 - Discontinued Industrial Non-Contact Infrared Thermometer/Transmitter with Local Display , Dual Alarm and Analogue Output

OS550A Series

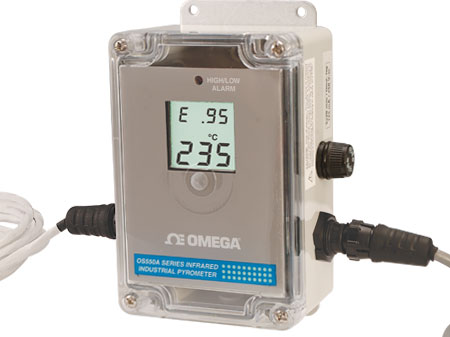

Industrial Non-Contact Infrared Thermometer/Transmitter with Local Display , Dual Alarm and Analogue Output | OS550A Series

See All Models Below

2 year warranty CE
  • Visual and Audible High and Low Alarms with Red LED Indication
  • Voltage Alarm Outputs to Drive External Relays
  • Fast 100 msec Response Time
  • Two-Way RS232 Communication Available
  • IP65 Aluminium Case Available
  • Wireless RS232 Communication Available
  • Accuracy ±1% of Reading
  • Models with Temperature Ranges Measuring Up to 1370°C (2500°F)
  • Current, Voltage, or Millivolt Output
  • Laser Sight Optional
  • °C/°F Keypad Selectable
  • Local Backlit LCD Display Standard
  • Dual Display Indicates Current plus Min, Max, Average, or Differential Temperatures on All Models
  • Emissivity Adjustable from 0.1 to 1.00 in 0.01 Steps via the Programmable Keypad
Infrared Temperature Measurement Instruments - View related products

Description

Click on this link if you need more information about infrared thermometer.

OMEGA's OS550A Series (Upgrade from OS550 Series) industrial, high performance, economical thermometer/transmitter offers a wide choice of temperature ranges, optical fields of view and 3 analogue outputs (1 mV/degree, 4 to 20 mA, and 0 to 5 Vdc) to feed directly into panel meters, recorders, temperature/process controllers, data loggers, data acquisition systems, or other process instrumentation.

Since the OS550A Series infrared thermometers do not use chopper motors or vibrator mechanisms, they can be mounted in any position and in hostile environments without suffering any loss in performance.

SPECIFICATIONS
Accuracy: ±1% of reading @ 25°C ambient or 1.7°C (3°F), whichever is greater
Repeatability: ±1% rdg ±1 digit
Spectral Response: 8 to 14 microns
Emissivity Range: 0.10 to 1.00
Field of View (FOV): See diagrams
Display: Backlit LCD
Transmitter Outputs: 1 mV/degree, 0 to 5 Vdc or 4 to 20 mA
Power: 8 to 24 Vdc @ 80 mA
Environmental Ratings: IP65 (NEMA 4) water-tight and dust-tight for sensing head and electronics enclosure
Ambient Operating Range: Sensing head 0 to 50°C (32 to 122°F) with OS550-WC; 0 to 85°C(32 to 185°F)
Response Time: 100 msec; 0 to 63.2% final value
Alarms: Visual and audible
Alarm Output: Voltage, 100 mA drive
RS232: Standard on OS552A, OS553A and OS554A models; two-way communication; PC compatible software included
Connection: 4.5 m (15') sensor head and power/output cables included
Dimensions:
    Sensing Head: 10.9 x 4.1 cm(4.30 x 1.63"), 11.2 to 20 thread
    Electronics: 12 x 80 x 50.8 cm(4.75 x 3.15 x 2")
Weight:
    Sensing Head: 0.45 kg (12 oz)
    0S550A Electronics Mounted in IP65 (NEMA 4) Enclosure: 1.2 kg (43.2 oz)
Max Laser Power Output: < 1 mW Class II laser product

PLEASE REVIEW PRODUCT SPEC SHEET FOR COMPLETE PRODUCT SPECIFICATIONS.
CONTACT SALES FOR ADDITIONAL PRODUCT INFORMATION
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
OS551A-MA-1
Consult Sales
Availability:


-23 to 400°C, Spot size 8.9mm @ 609 mm, 4 to 20 mA Output
OS551A-MA-2
Consult Sales
Availability:


-23 to 400°C, Spot Size 12.7mm @ 76 mm, 4 to 20 mA Output
OS551A-MA-5
Consult Sales
Availability:


-23 to 400°C, Spot Size 25.4mm @ 1524 mm, 4 to 20 mA Output
OS551A-MA-6
Consult Sales
Availability:


-23 to 400°C, Spot Size 3.8mm @ 152 mm, 4 to 20 mA Output
OS551A-V1-6
Consult Sales
Availability:


-23 to 400°C, Spot Size 3.8mm @ 152 mm, 0-5 Vdc Output
OS552A-V1-2
Consult Sales
Availability:


-23 to + 538°C, Spot size 12.7mm @ 76 mm, 0-5 Vdc Output
OS552A-MA-1
Consult Sales
Availability:


-23 to + 538°C, Spot size 8.9 mm @ 609 mm, 4-20 mA Output
OS552A-MA-2
Consult Sales
Availability:


-23 to + 538°C, Spot size 12.7mm @ 76 mm, 4-20 mA Output
OS552A-MA-3
Consult Sales
Availability:


-23 to + 538°C, Spot size 25.4mm @ 508 mm, 4-20 mA Output
OS552A-MA-4
Consult Sales
Availability:


-23 to + 538°C, Spot size 25.4mm @ 762 mm, 4-20 mA Output
OS553A-MA-2
Consult Sales
Availability:


-23 to +871°C , Spot size 12.7mm @ 76 mm, 4-20 mA Output
OS553A-MA-3
Consult Sales
Availability:


-23 to +871°C , Spot size 25.4mm @ 508 mm, 4-20 mA Output
OS554A-MA-3
Consult Sales
Availability:


-18 to +1371°C , Spot size 25.4mm @ 762 mm, 4-20 mA Output
OS554A-MA-6
Consult Sales
Availability:


-18 to +1371°C , Spot size 3.8mm @ 152 mm, 4-20 mA Output
Accessories
CAL-3-IR
Consult Sales
Availability:


Traceable calibration certificate for ranges to 530°C
CAL-3-IR-X
Consult Sales
Availability:


Traceable calibration certificate for ranges above 530°C
OS550-AP
€76.89
Availability: 1 week

Air purge collar
OS550-WC
€237.20
Availability: 1 week

Air/water cooling jacket
OS550-MF
Consult Sales
Availability:


Mounting frame
OS550-MB
€41.89
Availability: 1 week

Right-angle mounting bracket
OS550-MN
€18.08
Availability: 1 week

Mounting nut
OS550-LS
Consult Sales
Availability:


Laser sighting*
PSU-24V-UNIVERSAL
Consult Sales
Availability:


24V 0.75A regulated dc Power supply. 90-260 Vac 1.8 m lead with stripped ends. With International plugs
LP-PS-1524
Consult Sales
Availability:


DIN rail mount 24Vdc power supply. 15W, 0.63 Amp, 25mm wide. Powered by 85 to 260 Vac, 47 to 63 Hz
TX8-100
€144.45
Availability: In Stock

Power/output extension wire 30 m reel
All amounts shown in EUR
Note: * OS550-LS Laser sight is used for alignment during installation and then removed before measurements are taken.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) IR Thermometer/Transmitter select from:
OS551A for IR Thermometer/Transmitter with -23 to +400°C Temp Range
OS552A for IR Thermometer/Transmitter with -23 to + 538°C Temp Range
OS553A for IR Thermometer/Transmitter with -23 to +871°C Temp Range
OS554A for IR Thermometer/Transmitter with -18 to +1370°C Temp Range
OS551AM for IR Thermometer/Transmitter with Aluminium Case IP65 Option -23 to +400°C Temp. Range
OS552AM for IR Thermometer/Transmitter with Aluminium Case IP65 Option -23 to + 538°C Temp. Range
OS553AM for IR Thermometer/Transmitter with Aluminium Case IP65 Option -23 to +871°C Temp. Range
OS554AM for IR Thermometer/Transmitter with Aluminium Case IP65 Option -18 to +1370°C Temp. Range

(2) Output Type select from:
MV for 1 mV/deg.
MA for 4-20 mA
V1 for 0-5 Vdc

(3) Optical Range Code select from:
1 for Spot Size 8.9mm @ 609 mm
2 for Spot Size 12.7mm @ 76 mm
3 for Spot Size 25.4mm @ 508 mm
4 for Spot Size 25.4mm @ 762 mm
5 for Spot Size 25.4mm @ 1524 mm
6 for Spot Size 3.8mm @ 152 mm
Note: All combinations may not be valid, check spec sheet for valid part numbers.
