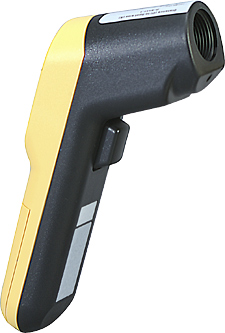

The OS561 is an economical tool for
temperature measurements, with
non-contact measurement
capability, user-friendly 2-key
operation, and max and hold
modes. The backlit LCD screen and
the laser stay on when the trigger is
depressed; auto power-off is fixed at
15 seconds for the LCD screen. The
OS561 uses 2 “AAA” batteries and
has a long battery life.
CAUTION! - This product is not intended for medical use or use on humans.
Specifications
Measurement Range:
-60 to 500°C (-76 to 932°F)
Accuracy:
±2% of reading or 2°C (4°F),
whichever is greater
Resolution:
1°C/1°F (0.1°C/0.1°F between
-9.9 and 199.9)
Response Time: 1 sec
Emissivity: Fixed 0.95
Field of View: 10:1
Operating Temperature:
0 to 50°C (32 to 122°F)
Power:
2 “AAA” alkaline batteries (included)
Battery Life: 18 hr continuous use
with laser and backlight; 180 hr
without laser and backlight
Dimensions:
175.2 x 39.0 x 71.9 mm
(6.9 x 1.53 x 2.8")
Weight: 179 g (6.3 oz) including
batteries (2 “AAA”)
† All amounts shown in EUR Note: Supplied with soft carrying case, 2 AAA alkaline batteries and operator's manual Ordering Example: (1) OS561 Infrared thermometer complete with 2 AAA batteries and operator's manual, €97,00
