The PR-17 series has been updated with low, high, and extreme temperature ranges; all of the new models will be PR-17(L,H,E)*. The older models have been discontinued.

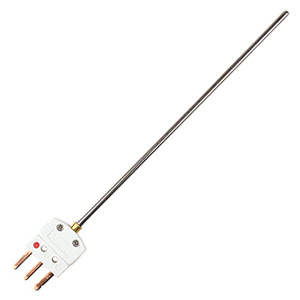

Omega's RTD connector-style probe has a 3-prong Omega "MTP" mini connector for easy connection to extension cables, hand-held meters or other instrumentation. Probe diameter is 1/8". The measuring portion of the probe can be simply inserted into a container to measure liquid temperature, or fixed into place in a pipe, tank, or vessel using an optional "BRLK" or "SSLK" compression fitting. These probes can be ordered with PT100 or PT1000 resistance element.
† All amounts shown in EUR
Part Number Builder
Build Your Part Number Below
RANGE select from: L for LOW (-50 to 250°C) H for HIGH (-50 to 450°C) E for EXTREME (-200 to 600°C)
NUMBER OF WIRES select from: 3 for 3-WIRE
OHMS select from: 100 for 100 OHMS 1000 for 1000 OHMS
SHEATH DIAMETER select from: 1/8 for 1/8" DIAMETER
SHEATH LENGTH select from: 2 for 2 INCHES 3 for 3 INCHES 4 for 4 INCHES 6 for 6 INCHES 9 for 9 INCHES 12 for 12 INCHES 18 for 18 INCHES 24 for 24 INCHES
Note: All combinations may not be valid, check spec sheet for valid part numbers.
