Cut To Length RTD Sensor Probe For Field Adaptable Applications

PRCTL Series

Cut To Length RTD Sensor Probe For Field Adaptable Applications | PRCTL Series

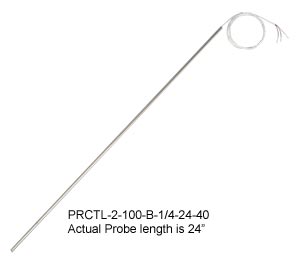

106,60 PRCTL-2-100-B-1/4-24-40

  • Probe Is Supplied 24" Long and Designed To Be Cut-To-Length as Needed Using a Simple Tube Cutter.
  • Great For Use As Replacement Sensors, Can Be Combined With a Wide Variety Of Spring Loaded Fittings, Compression Fittings, Connection Heads, Thermowells, Connectors or Other Accessories to Fit a Wide Variety of Applications.
  • Contains a Precision 100 Ohm DIN Platinum Thin Film Element in Either Class A or Class B Accuracies.
  • Temperature Range: -50 to 260ºC
  • All Sensors Supplied to IEC60751/ASTM E-1137 Color Codes
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

This sensor is designed to provide the ultimate in adaptability. Its 24" length can be reduced in the field by cutting off the required tube length using a standard tube cutter. Combining the PRCTL sensor with Omega's wide variety of fittings and accessories can customize this sensor on the spot for a wide variety of RTD replacement probe or OEM RTD sensor probe applications. This sensor is available in both Class A and Class B accuracies, in 3 wire standard (4-wire optional) in 1/4" diameter to fit many thermowells, or in 3/16", 6mm and 4.5mm diameters.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PRCTL-2-100-A-1/4-24-40
107,15
Availability: 5 weeks

100 Ohm DIN Platinum Class A, 1/4" diameter by 24" long sheath with 40" of 3-wire PFA insulated and jacketed cable
PRCTL-2-100-A-3/16-24-40
113,16
Availability: 1 week

100 Ohm DIN Platinum Class A, 3/16" diameter by 24" long sheath with 40" of 3-wire PFA insulated and jacketed cable
PRCTL-2-100-B-1/4-24-40
106,60
Availability: 5 weeks

100 Ohm DIN Platinum Class B, 1/4" diameter by 24" long sheath with 40" of 3-wire PFA insulated and jacketed cable
PRCTL-2-100-B-3/16-24-40
106,60
Availability: 5 weeks

100 Ohm DIN Platinum Class B, 3/16" diameter by 24" long sheath with 40" of 3-wire PFA insulated and jacketed cable
PRCTL-2-100-A-M6-600-1
110,98
Availability: 5 weeks

100 Ohm DIN Platinum Class A, 6mm diameter by 600mm long sheath with 1meter of 3-wire PFA insulated and jacketed cable
PRCTL-2-100-A-M4.5-600-1
110,98
Availability: 5 weeks

100 Ohm DIN Platinum Class A, 4.5mm diameter by 600mm long sheath with 1meter of 3-wire PFA insulated and jacketed cable
PRCTL-2-100-B-M6-600-1
104,54
Availability: 5 weeks

100 Ohm DIN Platinum Class B, 6mm diameter by 600mm long sheath with 1meter of 3-wire PFA insulated and jacketed cable
PRCTL-2-100-B-M4.5-600-1
106,60
Availability: 5 weeks

100 Ohm DIN Platinum Class B, 4.5mm diameter by 600mm long sheath with 1meter of 3-wire PFA insulated and jacketed cable
Most Popular Accessories
FTW-G4-11-80-R2
Consult Sales
Availability:


Fabricated Thermowell, 80 mm Insertion Length, 1/4" BSPP female thread for probe and 1/2" BSPT male thread for process
FTW-G4-11-230-R2
Consult Sales
Availability:


Fabricated Thermowell, 230 mm Insertion Length, 1/4" BSPP female thread for probe and 1/2" BSPT male thread for process
FTW-G4-11-380-R2
79.10
Availability: 5 weeks

Fabricated Thermowell, 380 mm Insertion Length, 1/4" BSPP female thread for probe and 1/2" BSPT male thread for process
FTW-G4-11-530-R2
Consult Sales
Availability:


Fabricated Thermowell, 530 mm Insertion Length, 1/4" BSPP female thread for probe and 1/2" BSPT male thread for process
SSLK-M60-14P
41.84
Availability: 1 week

Stainless Steel Compression Fitting, for 6mm Diaprobe. 1/4" BSP Thread
BRLK-M60-14P
18.31
Availability: 1 week

Brass Steel Compression Fitting, for 6 mm Dia probes. 1/4" BSP Thread
MTP-U-M
€4.81
Availability: In Stock

Miniature Connector
DP460-RTD
Consult Sales
Availability:


Economical Temperature Meter
All amounts shown in EUR
Note: For 4 wire configuration change “2” to “3” in the model number and contact sales for pricing.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Accuracy Class select from:
A for Class A
B for Class B

(2) Sheath Diameter select from:
1/4 for 1/4 Diameter
3/16 for 3/16 Diameter
M6 for 6mm Diameter
M4.5 for 4.5mm Diameter

(3) Sheath Length select from:
24 for 24 Length
600 for 600mm Length

(4) Cable Length select from:
40 for 40 Length
1 for 1 meter Length
Note: All combinations may not be valid, check spec sheet for valid part numbers.
