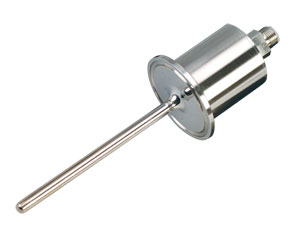

3-A Approved Hygienic Probes with Integral Transmitter and M12 Connector

PRS-TMM12 Temperature Probe-Transmitter Assemblies

3-A Approved Hygienic Probes with Integral Transmitter and M12 Connector for quick and reliable connection | PRS-TMM12 Temperature Probe-Transmitter Assemblies

See All Models Below

  • 3-A Approved RTD Sensor With Integral Transmitter
  • Available with Standard 1/4" Diameter, or Heavy-Duty 3/8" to 3/16" Diameter Stepped Probe
  • 3", 4", 5" and 6" Lengths Standard, Other Lengths Available
  • 1½" 16 AMP Tri-Grip™ (Tri-Clamp® Compatible) Fitting Standard
  • 316L SS Wetted Surfaces with 32 µin or Better Surface Finish
  • Two Available Transmitter Ranges:
    -1 Ranged for -40 to 49°C (-40 to 120°F) and
    -2 Ranged for -18 to 93°C (0 to 200°F)
  • -50 to 200°C (-58 to 392°F) Sensing Temperature Range
    85°C (185°F) Max Temperature at Connector End
  • 4-Pin M12 Male Connector Standard

Description

Click on this link if you need more information about Sanitary Sensors.

The 3-A Approved OMEGA™ PRS-TMM12 series transducers are designed for use in Sanitary or Hygienic Clean-in-Place applications in the Food, Dairy, Beverage and BioPharmaceutical industries. These transducers are manufactured with 316L stainless steel housings that meet the dimensional and finish requirements of 3-A Standard 74-03 and ASME BPE-2007, and are welded and processed to provide a clean, smooth, 32 microinch or better surface finish in the wetted areas for Clean-in-Place processes.

The probe stems are manufactured in two configurations; standard duty probes with a ¼" diameter probe, and a heavy duty design with a stepped 3/8" to 3/16" diameter probe design for good response times.

The OMEGA™ PRS-TMM12 series transducers are identical to the PRS-M12 RTD sensors except for the addition of a built-in 4 to 20 mA transmitter inside the housing. This eliminates the need for a separate transmitter when a 4 to 20 mA signal is required for your instrumentation. The housing cover can be removed allowing for the adjustment of the transmitter's zero and span settings.

There are two ranges offered as standard offerings:
  • The TM1M12 model ranged to provide a 4-20 milliamp output between -40 and 49°C (-40 to 120°F),
  • The TM2M12 model ranged to provide a 4-20 milliamp output between -18 and 93°C (0 to 200°F).

  • Other ranges are available as special orders, please consult our sales engineers.

    A 4-Pin M12 Connector provides a quick and convenient connection point for process wiring. Simply install an M12 extension cable to the sensor to connect it to your monitoring or control instrumentation.
    Wiring Diagram


    Sanitary Temperature Sensor Specifications Include:
  • 316L stainless steel process wetted surfaces with surface finishes of 32 microinches or better.

  • Probe lengths of 3, 4, 5 or 6 inches available from stock, other lengths available as special orders.

  • Standard mounting flange is 1½"-16AMP Tri-Grip™ in conformance with ASME BPE-2007.

  • 4-Pin, M12 Connector.

  • Thermal response time of 2.5 seconds or less in water flowing at 3 ft/sec (63% response).

  • 4 to 20 milliamp output proportional to temperature (see ranges available).

  • Supply Voltage 8 to 35VDC, 24VDC recommended.

  • Maximum temperature range is -50 to 200°C at the sensing end, 85°C max at the connector end.


  • Food process hygienic temperature sensors can be used to aid food safety inspection compliance and verification of time temperature control. Combined with a chart recorder model CTXL you can temperature monitor a CCP ( Critical Control Point) or sanitation time and move toward a HACCP (Hazard Analysis Critical Control Point) compliance plan.

    Place Order(Specify Model Number)
    Part Number/Desc.
    Qty
    Description
    -40 to 49 deg C (-40 to 120 deg F)
    Quick Ship
    PRS-S-0300-D1-TM1M12
    Consult Sales
    Availability:


    3 in Long Standard Duty Probe
    Quick Ship
    PRS-S-0400-D1-TM1M12
    Consult Sales
    Availability:


    4 in Long Standard Duty Probe
    Quick Ship
    PRS-S-0500-D1-TM1M12
    Consult Sales
    Availability:


    5 in Long Standard Duty Probe
    Quick Ship
    PRS-S-0600-D1-TM1M12
    234.00
    Availability: 1 week

    6 in Long Standard Duty Probe
    Quick Ship
    PRS-H-0300-D1-TM1M12
    Consult Sales
    Availability:


    3 in Long Heavy Duty Probe
    Quick Ship
    PRS-H-0400-D1-TM1M12
    Consult Sales
    Availability:


    4 in Long Heavy Duty Probe
    Quick Ship
    PRS-H-0500-D1-TM1M12
    Consult Sales
    Availability:


    5 in Long Heavy Duty Probe
    Quick Ship
    PRS-H-0600-D1-TM1M12
    Consult Sales
    Availability:


    6 in Long Heavy Duty Probe
    -18 to 93 deg C (0 to 200 deg F)
    Quick Ship
    PRS-S-0300-D1-TM2M12
    234.00
    Availability: 1 week

    3 in Long Standard Duty Probe
    Quick Ship
    PRS-S-0400-D1-TM2M12
    Consult Sales
    Availability:


    4 in Long Standard Duty Probe
    Quick Ship
    PRS-S-0500-D1-TM2M12
    Consult Sales
    Availability:


    5 in Long Standard Duty Probe
    Quick Ship
    PRS-S-0600-D1-TM2M12
    Consult Sales
    Availability:


    6 in Long Standard Duty Probe
    Quick Ship
    PRS-H-0300-D1-TM2M12
    Consult Sales
    Availability:


    3 in Long Heavy Duty Probe
    Quick Ship
    PRS-H-0400-D1-TM2M12
    Consult Sales
    Availability:


    4 in Long Heavy Duty Probe
    Quick Ship
    PRS-H-0500-D1-TM2M12
    Consult Sales
    Availability:


    5 in Long Heavy Duty Probe
    Quick Ship
    PRS-H-0600-D1-TM2M12
    Consult Sales
    Availability:


    6 in Long Heavy Duty Probe
    Accessories
    Quick Ship
    M12C-PUR-4-S-F-2
    €14.00
    Availability: 1 week

    Extension cable with straight 4-pin female M12 mating connector and polyurethane jacketed cable 2 meters (6.5') long.
    Quick Ship
    M12C-PVC-4-S-F-5
    €15.50
    Availability: 1 week

    Extension cable with straight 4-pin female M12 mating connector and PVC jacketed cable 5 meters (16.4') long.
    Quick Ship
    M12C-PUR-4-S-F-5
    €17.00
    Availability: In Stock

    Extension cable with straight 4-pin female M12 mating connector and polyurethane jacketed cable 5 meters (16.4') long.
    Quick Ship
    M12C-PVC-4-S-F-10
    €17.75
    Availability: 1 week

    Extension cable with straight 4-pin female M12 mating connector and PVC jacketed cable 10 meters (32.8') long.
    Quick Ship
    M12C-PUR-4-S-F-10
    20.50
    Availability: 1 week

    Extension cable with straight 4-pin female M12 mating connector and polyurethane jacketed cable 10 meters (32.8') long.
    Quick Ship
    M12C-PUR-4-R-F-2
    €14.00
    Availability: 1 week

    Extension cable with a right angled 4-pin female M12 mating connector and polyurethane jacketed cable 2 meters (6.5') long.
    Quick Ship
    M12C-PVC-4-R-F-5
    €15.50
    Availability: 1 week

    Extension cable with a right angled 4-pin female M12 mating connector and PVC jacketed cable 5 meters (16.4') long.
    Quick Ship
    M12C-PVC-4-R-F-10
    €17.75
    Availability: 1 week

    Extension cable with a right angled 4-pin female M12 mating connector and PVC jacketed cable 10 meters (32.8') long.
    Quick Ship
    M12C-PUR-4-R-F-10
    19.00
    Availability: 1 week

    Extension cable with a right angled 4-pin female M12 mating connector and polyurethane jacketed cable 10 meters (32.8') long.
    All amounts shown in EUR
    Note: Please consult sales for other flange diameters, styles and probe lengths.

    Part Number Builder

    Build Your Part Number Below
    Option Descriptions:


    (1) Probe Type select from:
    S for Standard Duty 1/4" Diameter
    H for Heavy Duty Stepped 3/8" to 3/16" Diameter

    (2) Length select from:
    0300 for 3" Probe
    0400 for 4" Probe
    0500 for 5" Probe
    0600 for 6" Probe

    (3) Flange Size select from:
    B1 for 3/4" Flange
    D1 for 1 1/2" Flange
    E1 for 2" Flange
    F1 for 2 1/2" Flange
    G1 for 3" Flange
    H1 for 4" Flange

    (4) Transmitter with M12 Plug Connection select from:
    TM1M12 for -40 to 49C Temperature Range
    TM2M12 for -18 to 93C Temperature Range
    Note: All combinations may not be valid, check spec sheet for valid part numbers.
