Platinum Resistance Sensors, 4-Wire Stainless Steel Probes,
Extension Wire for CY7 Series, & Constant Power Supplies

PT100, CY82, CYW4 & CY100 Series

Platinum Resistance Sensors,  4-Wire Stainless Steel Probes, Extension Wire for CY7 Series, & Constant Power Supplies | PT100, CY82, CYW4 & CY100 Series

24,80 CY82-P1

  • Platinum Resistance Sensors
  • 4-Wire stainless steel probe
    (Band 4 Silicon Diode Sensor)
  • Special Low Thermal Conductivity
    Extension Wire for CY7 Series Diodes
  • Special Low Thermal Conductivity
    Extension Wire for CY7 Series Diodes
Superconductivity and Cryogenics Temperature Measurement - View related products

Description

Click on this link if you need more information about Cryogenic temperature sensors.

Typical connection for sensors such as the CY7 series. The connection points (A) are made close to the sensor in the case of 4-lead measurement, and near or at the instrumentation for a 2-lead measurement. Generally, the 4-lead connection is preferred.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description

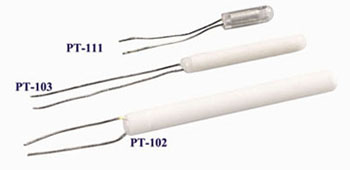

PT-102
Consult Sales
Availability:


70 Sensor, 2 x 20.3 mm (250 mg)
PT-103
401.64
Availability: 9 weeks

Sensor, 1.8 x 12.1 mm (120 mg)
CY82-P1
€24.80
Availability: 1 week

Sensor Plug for CYTX231 Series
CY82-P2
€21.90
Availability: 1 week

Sensor Plug for CYC320 Series
CYW4-32-25
€353.39
Availability: 9 weeks

4-lead wire, 32 AWG, 25 ft.*
CYW4-36-25
€260.04
Availability: 9 weeks

4-lead wire, 36 AWG, 25 ft.*
All amounts shown in EUR
Note:
* Phosphor bronze wire, Insulation is polyimide on 32 AWG wire and formvar (vinyl acetal) on 36 AWG wire. Both types of insulation are rated down to 1.4K
