Paperless universal inputs Recorder

RD8250 Series

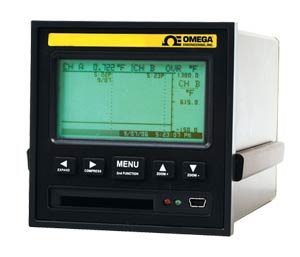

Paperless universal inputs Recorder | RD8250 Series

Paperless universal inputs Recorder

625,00 RD8252

2 year warranty CE
  • Paperless Recorder with 2 Configurable Isolated Inputs for DC Voltage and Current, Thermocouples, RTDs, Frequency, and rpm Pulse
  • 4 Internal Alarm Setpoints
  • 2 Alarm Relay Outputs
  • 1 Digital Control Input
  • Maximum Storage Rate of 100 Samples/s
  • Compact Flash Cards Can Store Up to 2 Gigabytes of Data in Memory
  • Optional Software for Graphic Analysis, Printing, Transfer, and Exporting (For USB and EI options)
  • Optional Software for Graphic Analysis, Printing, Transfer, and Exporting
  • Standard 1/4 DIN Panel Mount
  • Bright, Clear Display
Recorders - View related products

Description

The paperless recorder of the series RD8250 has dual-function keys and sharp display, OMEGA’s RD8250 is a sophisticated process recorder. The graphic user interface— comprising a nematic LCD with white LED backlight—makes configuration easy.

This recorder can display real-time data in digital or trend format. Via the front-panel USB port (order “-USB” option), the user can upload data from a flash memory card to a PC. The RD8250 comes with a universal power supply (with international plug set), 120 to 240 Vac, 50/60 Hz. Other power options include 12 to 24 Vdc isolated input, and rechargeable battery pack (order “-UPS” option). With the battery pack installed, the RD8250 can function for up to 8 hours, preserving data and settings in the event of a power loss.
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Click to expand/minimize a list of what others bought with theRD8252
RD8252 Star
625,00
Availability: 1 week

Paperless recorder, 2 inputs, universal AC adaptor
Click to expand/minimize a list of what others bought with theRD8252-EI
RD8252-EI Star
685,00
Availability: 1 week

Paperless recorder, 2 inputs, universal AC adaptor with Ethernet option
Click to expand/minimize a list of what others bought with theRD8252-UPS-USB
RD8252-UPS-USB Star
775,00
Availability: 4 weeks

Paperless recorder, 2 inputs, universal AC adaptor with Rechargeable battery for DC-powered unit with USB port

RD8252-UPS Star
720,00
Availability: 4 weeks

Paperless recorder, 2 inputs, universal AC adaptor with Rechargeable battery for DC-powered unit
Click to expand/minimize a list of what others bought with theRD8252-USB
RD8252-USB Star
665,00
Availability: In Stock

Paperless recorder, 2 inputs, universal AC adaptor with USB port

RD8253 Star
625,00
Availability: 4 weeks

Paperless recorder, 2 inputs, DC power

RD8253-EI Star
715,00
Availability: 4 weeks

Paperless recorder, 2 inputs, DC power with Ethernet option
Click to expand/minimize a list of what others bought with theRD8253-USB
RD8253-USB Star
685,00
Availability: 1 week

Paperless recorder, 2 inputs, DC power with USB port
Accessories
Click to expand/minimize a list of what others bought with theRD8250-SW
RD8250-SW Star
91.00
Availability: In Stock

Windows software for graphics analysis, printing and exporting
Click to expand/minimize a list of what others bought with theRD8250-CFCR
RD8250-CFCR Star
55.00
Availability: 1 week

Compact flash card reader, USB 2.0 compatible
Click to expand/minimize a list of what others bought with theSPC14
SPC14 Star
33.00
Availability: In Stock

NEMA 4 (IP65) splashpoof cover
Click to expand/minimize a list of what others bought with theRD8250-MC2048MBCF
RD8250-MC2048MBCF Star
92.00
Availability: In Stock

2048 MB memory card
Click to expand/minimize a list of what others bought with theRD8250-MC1024MBCF
RD8250-MC1024MBCF Star
70.00
Availability: 1 week

1024 MB memory card

RD8250-MC512MBCF Star
55.00
Availability: 4 weeks

512 MB memory card

RD8250-PSC-2W Star
Consult Sales
Availability:


Universal AC Adaptor 100-240VAC (replacement part)
All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Output select from:
2 for Universal AC adaptor
3 for DC power 12 to 24 Vdc

(2) Additional Option select from:
Nothing(leave field blank) for None
-UPS for Rechargeable battery for RD8252 unit
-USB for USB communications with basic software
-EI for Ethernet communications port
Note: All combinations may not be valid, check spec sheet for valid part numbers.
