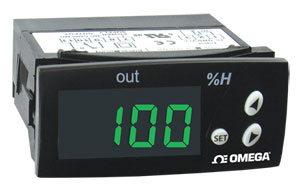

On/Off Relative Humidity Controller

RHCN-7000 Series

On/Off Relative Humidity Controller | RHCN-7000 Series

On/Off Relative Humidity Controller

109,05 RHCN-7006

1 year warranty CE
  • Humidity controller with bright Green 3-Digit LED Display
  • 0 to 1 or 0 to 3 Vdc, 4 to 20 mA Inputs
  • 8 Amp Relay Output
  • Simple On/Off Control
  • Compatible with RH Transmitters
  • Optional RH Probe
Relative Humidity Measurement Instruments - View related products

Description

The microprocessor based RHCN-7000 Series on/off humidity controller provides control for humidifying or de-humidifying. Relative humidity, output status, and error messaging can be viewed on the bright green LED display. The controller features user defined parameters including setpoint, hysteresis, control type, and probe adjustment. Access to programming parameters can be locked for security purposes using the password protection feature.

Select RHCN-7000 models can be interfaced with most RH transmitters that provide a 0 to 1 Vdc or 4 to 20 mA output, or an optional RH probe, model RHCN-7000-RP can be ordered to work with 0 to 3 Vdc input models.

Specifications
Instrument RHCN-7000-RP Probe (for models RHCN-7005 and RHCN-7006 only)
Relative Humidity Range: 0 to 100% RH
Input: 0 to 3 or 0 to 1 Vdc or 4 to 20 mA (depending on model)
Accuracy: ±1% RH
Display: 3-digit, green, 12.7 mm (0.5") digits
Resolution: 1-digit
Temperature Limits: 0 to 70°C (32 to 158°F)
Storage Temperature: -20 to 80°C (-4 to 176°F)
Output: 8 A SPDT relay @ 250 Vac resistive
Horsepower Rating (HP): 1/3HP
Control Type: ON/OFF
Power Requirements: 110 or 230 Vac (depending on model)
Memory Backup: Nonvolatile memory
Weight: 65 g (2.3 oz)
Front Panel Rating: IP64
RHCN-7000-RP Optional Humidity Probe Output: 0 to 3 Vdc
Dimensions: 60 mm long, 25 mm dia.
Cable: 1.5 m long, 7 mm O.D, 3-core cable
Relative Humidity Range: 25 to 90% RH
Accuracy: ±5% RH @ 25°C (Probe Only)
System Accuracy: ±6% RH (Instrument and Probe)



Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
RHCN-7001
104,64
Availability: 1 week

RH controller, 0 to 1 Vdc input, 110 Vac
RHCN-7002
118,86
Availability: 1 week

RH controller, 0 to 1 Vdc input, 230 Vac
RHCN-7003
104,64
Availability: 1 week

RH controller, 4 to 20 mA input, 110 Vac
RHCN-7004
109,05
Availability: 1 week

RH controller, 4 to 20 mA input, 230 Vac
RHCN-7005
104,64
Availability: 1 week

RH controller, 0 to 3 Vdc input, 110 Vac
RHCN-7006
109,05
Availability: 1 week

RH controller, 0 to 3 Vdc input, 230 Vac
RHCN-7000-RP
129,55
Availability: 1 week

Humidity probe, 0 to 3 Vdc output (for models RHCN-7005 and RHCN-7006 only)
Accessories
CNQUENCHARC
€51.23
Availability: In Stock

Noise suppression kit, 110 to 230 Vac
All amounts shown in EUR
Note: Comes with operator’s manual.
Ordering Example: (1) RHCN-7000-RP Humidity Probe, €129.55  plus (1) RHCN-7006 Humidity Controller with 0-3 V input. 230Vac powered, €109.05, €129.55 + 109.05 = €238.60
