Class B Pt100 Sensors with Lead Wires (5-Pack)

RTD-2 (Class B) 5-Pack Series

^€146,32 RTD-2-F3105-36-T-B

PLACE ORDER

Popular Sensor Styles Stocked for Immediate Delivery
Industrial Grade (Class “B” = ±0.3 0° at 0ºC) Accuracy
Sold in Economical 5-Packs
Simple, Flexible Sensing Option for a Wide Variety of Measurement Applications
Stripped Leads Standard. Connector options also available.

RTD (PT100) Probes, Elements and Assemblies - View related products

Description

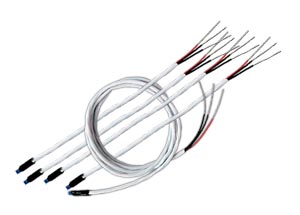

Omega's RTD Class B Pt100 elements with attached lead wire in a convenient 5-pack. These industrial grade RTD sensors are supplied with attached lead wires for added flexibility in many different applications. The size of the potted junction between lead wire and element is kept as small as possible. Note: These elements are not intended for direct immersion into liquids. Configurations below reflect 1 m long lead wire, Style-2 (3 Wire).

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

RTD-2-F3102-36-T-B

€151,75

Availability: 1 week

F3102 (4 x 2 mm) RTD element, PFA insulated lead wire, epoxy transistion.

RTD-2-F3105-36-T-B

€146,32

Availability: 1 week

F3105 (2 x 2 mm) RTD element, PFA insulated lead wire, epoxy transistion.

RTD-2-F3102-36-G-B

€151,75

Availability: 5 weeks

F3105 (4 x 2 mm) RTD element, Fiberglass insulated lead wire, ceramic transistion.

RTD-2-F3105-36-G-B

€151,75

Availability: 5 weeks

F3105 (2 x 2 mm) RTD element, Fiberglass insulated lead wire, ceramic transistion.

RTD-2-1PT100KN2528-36-T-B

€285,49

Availability: 5 weeks

2.8 dia x 25 mm Long wire wound RTD element, PFA insulated lead wire, epoxy transistion.

RTD-2-1PT100K2515-36-T-B

€291,11

Availability: 5 weeks

1.5 dia x 25 mm Long wire wound RTD element, PFA insulated lead wire, epoxy transistion.
