RTD Sensors Class B Industrial Grade 3-Packs

RTD-800-B Series

RTD Sensors Class B Industrial Grade 3-Packs | RTD-800-B Series

RTD Sensors Class B Industrial Grade 3-Packs

123,00 RTD-850-B

  • RTD Pt100 probes sold in Economical 3-Packs
  • Popular Sensor Styles Stocked for Immediate Delivery
  • Industrial Grade (Class “B”, ±0.12%) Accuracy
  • Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
  • Same Rugged Sensor Construction as Our High-Accuracy Sensors, at a Lower Price
  • Simple, Flexible Sensing Option for a Wide Variety of Measurement Applications
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

Find how a Pt100 works on this link.

An economical industrial grade Class "B" RTD sensor in a convenient 3-pack. Typical Applications Include: Product Environmental and Performance Testing, Climate Control/HVAC, Thermal Protection of Electronic Products (Power Supplies, Electronic Racks, and EnclosuresTemperature) and Monitoring of Processes, Equipment, and Structures
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Quick Ship
Click to expand/minimize a list of what others bought with theRTD-805-B
RTD-805-B
162,00
Availability: 2 weeks

Sensing element is installed into a stainless steel housing for direct contact with air and gas
Quick Ship

RTD-806-B
154,00
Availability: 4 weeks

Sensing element is installed into a plastic housing for direct contact with air and gas
Quick Ship
Click to expand/minimize a list of what others bought with theRTD-809-B
RTD-809-B
156,00
Availability: 3 weeks

Sensor is packaged in a round stainless steel housing and encapsulated with epoxy. An ideal design for cementing or applying to flat or pliable surfaces.
Quick Ship

RTD-810-B
151,00
Availability: 4 weeks

Closed ended stainless steel probe with 1/8 NPT threaded fitting. This design is ideally suited for fluid measurements and use in pressurized systems.
Quick Ship

RTD-810M-B
151,00
Availability: 3 weeks

Closed ended stainless steel probe with 1/8 BSPT threaded fitting. This design is ideally suited for fluid measurements and use in pressurized systems.
Quick Ship

RTD-830-B
123,00
Availability: 3 weeks

Aluminium housing is machined to accept a #4 screw for easy mounting on flat surfaces. Can also be easily cemented or applied to flat surfaces.
Quick Ship

RTD-830-B-MTP
145,00
Availability: 3 weeks

Aluminium housing is machined to accept a #4 screw for easy mounting on flat surfaces. Can also be easily cemented or applied to flat surfaces. Terminated with an MTP style connector (including mating connector).
Quick Ship

RTD-850-B
123,00
Availability: 1 week

1/4" stainless steel hex body includes a #8-32 thread for installation into tight places. Can be used in screw or bolt holes for measuring structure temperatures.
Quick Ship

RTD-850-B-MTP
145,00
Availability: 4 weeks

1/4" stainless steel hex body includes a #8-32 thread for installation into tight places. Can be used in screw or bolt holes for measuring structure temperatures. Terminated with an MTP style connector (includes mating connector).
Quick Ship

RTD-850M-B
123,00
Availability: In Stock

1/4" stainless steel hex body includes an M4 thread for installation into tight places. Can be used in screw or bolt holes for measuring structure temperatures.
Quick Ship

RTD-860-B
156,00
Availability: 1 week

Closed-ended stainless steel tube with a round mounting plate and two holes are supplied for mounting. PFA insulated lead wires.
Most Popular Accessories
Quick Ship
Click to expand/minimize a list of what others bought with theTXDIN1610
TXDIN1610
120.00
Availability: In Stock

DIN Rail mount 4-20mA transmitter for RTD or Thermocouple input. 24Vdc powered
Quick Ship

SPRTX-M2
163.00
Availability: 1 week

4 to 20 milliamp Plug-In Transmitter
Quick Ship
Click to expand/minimize a list of what others bought with theOM-DAQPRO-5300
OM-DAQPRO-5300
Consult Sales
Availability:


Portable Handheld Datalogger
Quick Ship
Click to expand/minimize a list of what others bought with theOM-CP-QUADRTD
OM-CP-QUADRTD
575.00
Availability: In Stock

4-Channel Temperature Data Logger
Quick Ship
Click to expand/minimize a list of what others bought with theHH804U
HH804U
152.00
Availability: 6 weeks

Precision Handheld Thermometer
All amounts shown in EUR
Note: Select Specifications: All sensors are provided with platinum elements with a resistance of 100.00 ±0.12 Ohms at 0°C, and a temperature coefficient (alpha) of 0.00385 Ohms/Ohms/°C. All sensors are supplied with 1 m of 3-core 0.13mm² stranded nickel-plated copper, PFA insulated, PFA jacketed cable. Standard termination is stripped leads.

Also available with a wide variety of plugs and sockets fitted. Contact sales for pricing and to order.

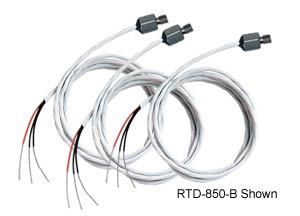

Ordering Example: (1) RTD-850-B Bolt on style RTD Sensor, 3-pack, stainless steel housing, 1 metre PFA insulated leads with stripped ends, €123.00
