Precision RTD Probes for Lab Applications

RTD-860

Precision RTD Probes for Lab Applications | RTD-860

Precision RTD Probes for Lab Applications

147,50 RTD-860

  • High-Accuracy Class “A” 100 Ohm DIN Platinum Element Standard
  • Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
  • Temperature Range Is -200 to 230ºC
  • Includes Stainless Steel Sheath and Flange with Pre-Drilled Mounting Holes for Easy Installation
  • 3-Wire PFA Insulated & Jacketed Cable with Miniature 3-Pin Connector for Connecting to Most Instruments
  • Mating Connector Sold Separately!
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

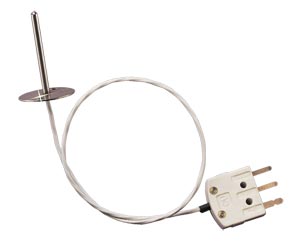

The RTD-860 sensor is designed for easy installation into air ducts, laminar flow booths or other applications where temperature measurements must be taken through thin walls or structures. The sensor features an all stainless steel welded construction consisting of a closed-end tube and mounting plate. The platinum RTD sensor is housed in the tip of the 1/8" diameter tube for fast response. The 1" dia. mounting plate has two (2) 0.15" diameter holes for convenient mounting, and the sensor is supplied with 1 meter (40") of PFA insulated & jacketed cable and miniature 3-pin connector.

Combine this sensor with Omega's extension cables, thermometer instruments, data loggers, controllers or displays to create a complete temperature control and monitoring system. Need to connect the RTD-860 to a remote location, try our SPRTX transmitter for a simple but effective plug-in 4-20 milliamp signal.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
RTD-860
147,50
Availability: 1 week

Duct Mountable 100 Ohm Class A DIN Platinum RTD Sensor with Tube and Mounting Plate, 1Meter (40") of PFA Insulated & Jacketed Cable and Miniature male MTP Connector.
RTD-860-OTP
€158,03
Availability: 5 weeks

Duct Mountable 100 Ohm Class A DIN Platinum RTD Sensor with Tube and Mounting Plate, 1Meter (40") of PFA Insulated & Jacketed Cable and Standard male OTP Connector.
RTD-860-TA3F
Consult Sales
Availability:


Duct Mountable 100 Ohm Class A DIN Platinum RTD Sensor with Tube and Mounting Plate, 1Meter (40") of PFA Insulated & Jacketed Cable and male Audio Connector.
Sold Separately, Mating Connector & clamp & other accessory Part Numbers
MTP-U-F
€5.42
Availability: In Stock

Mating Connector for MTP Termination type
OTP-U-F
€12.86
Availability: In Stock

Mating Connector for OTP Termination type
TECU10-MTP-U-M-MTP-U-F
€27.44
Availability: 4 weeks

10 Foot Long PFA Insulated Extension Cable with Miniature 3-Socket Connector One End and Miniature 3-Pin Plug Connector the Other End
CN1A-RTD
272.88
Availability: 1 week

1/16 DIN On-Off LCD Temperature Controller
DRF-RTD-115VAC-0/200C-4/20
Consult Sales
Availability:


RTD Input Signal Conditioner
All amounts shown in EUR
Note: Terminations Available: Provided with standard miniature connector; for larger sized connector add “-OTP” to model number and $7 to price; for audio connector add “-TA3F” to model number and $17 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) RTD-860 Duct Mountable 100 Ohm Class A DIN Platinum RTD Sensor with Tube and Mounting Plate, 1Meter (40, €147.50
