Surface Temperature Thermocouple Probe, Economical High-Temperature

SPHT

Economical High Temperature Surface Probe | SPHT

Economical High Temperature Surface Probe

68,69 SPHT-J-6

1 year warranty
  • Ceramic Tip Rated to 650°C
  • J, K, or E Surface Probes Available
  • Probe Lengths of 150 mm and 300 mm Standard
  • Moulded Handle Rated to 220°C
  • Retractable Curly Cable Expands to 1.5 metres
  • mini Thermocouple Plug for use with Handheld Thermometers
  • 304 Stainless Steel Sheath
  • Response Time: 2 Seconds Max for 63% Response
Infrared Temperature Measurement Instruments - View related products

Description

The spring mounted thermocouple tip ensures optimum surface contact and a fast response time. The comfortable, moulded handle, coiled cable which extends to 1.5 metres and mini plug make this probe ideal for use with handheld thermocouple thermometers.

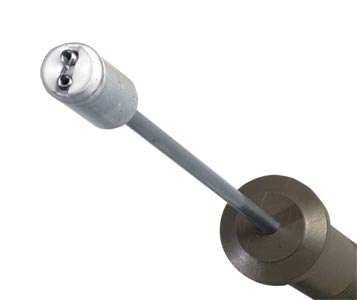

The sensor head is 9.5 mm diameter and 27 mm long, mounted on a 3 mm diameter stem for 150 mm long probes and 6 mm diameter for 300 mm.

Probes with a 300 mm long sheath length are also available with a right angle (90°) bend approximately 70mm back from the tip.

The SPHT style probe is supplied with many of Omega's Infrared temperature indicators to use as a reference for establishing emissivity.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
K Thermocouple Type
SPHT-KI-100
Consult Sales
Availability:


100 mm long Type K surface probe. IEC Green lead and plug
SPHT-KI-150
Consult Sales
Availability:


150 mm long Type K surface probe. IEC Green lead and plug
SPHT-KI-300
Consult Sales
Availability:


300 mm long Type K surface probe. IEC Green lead and plug
SPHT-KI-300-RA
Consult Sales
Availability:


Right Angle Type K surface probe. IEC Green lead and plug
SPHT-K-6
Consult Sales
Availability:


150 mm long Type K surface probe. ANSI Yellow lead and plug
SPHT-K-12
Consult Sales
Availability:


300 mm long Type K surface probe. ANSI Yellow lead and plug
SPHT-K-12-RA
Consult Sales
Availability:


Right Angle Type K surface probe. ANSI Yellow lead and plug
J Thermocouple Type
SPHT-J-6
68.69
Availability: 8 weeks

150 mm long Type J surface probe. Black lead and plug
SPHT-J-12
75.14
Availability: 8 weeks

300 mm long Type J surface probe. Black lead and plug
SPHT-J-12-RA
82.83
Availability: 8 weeks

Right Angle Type J surface probe. Black lead and plug
All amounts shown in EUR
Ordering Example: (1) SPHT-KI-300 Type K Surface Temperature Probe, 300 mm long, with green cable and plug, €75.14
