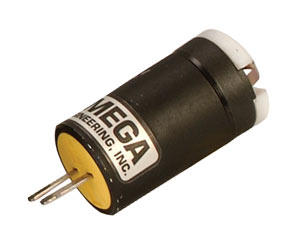

Surface Temperature Connector/Sensor

STC-100 Series

See All Models Below

PLACE ORDER

Connector Plugs Directly into Most Handheld Thermometers
Available in K or E Thermocouple Types
For Measurements Up to 218°C (425°F)
Fast 250 msec Response Time
Removable, Replaceable Sensor Element For Easy Maintenance

Thermocouples - View related products

Description

OMEGA’s new surface temperature Connector offers a fast, easy way to measure surface temperatures. Just plug the STC100 into your handheld thermometer and you’re ready to take readings. The small, compact connector body features an integral thermocouple sensor specifically designed for low temperature surface measurements and can be easily removed for cleaning or replacement if damaged. Models feature miniature male connection pins and are available in K or E calibrations.

SPECIFICATIONS
Thermocouple Types: K, E
Measurement Accuracy: ±1°C (±1.8°F)
Max Temperature Usage: 218°C (425°F)
Mating Connector: Miniature male (SMP)
Dimensions: 64 L x 25.4 mm D (2.5 x 1")
Connector Body: Anodized Aluminum
Connector Sensor Head: Glass filled Nylon/FEP

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

STC-100-K-SMP-M

€104,69

Availability: 5 weeks

Surface temperature connector, miniature male connector, Type K

STC-100-E-SMP-M

Consult Sales

Availability:

Surface temperature connector, miniature male connector, Type E

Accessories

88001K-RE

Consult Sales

Availability:

Type K Replacement Element

88001E-RE

€41.21

Availability: 5 weeks

Type E Replacement Element

HH-26K

Consult Sales

Availability:

Economical Type K, thermometer,1deg resolution

HH-21A

Consult Sales

Availability:

Digital thermometer, J/K/T switchable

HH-22A

Consult Sales

Availability:

J, K, T thermocouple thermometer with dual input, 0.1deg resolution

† All amounts shown in EUR
Note: Comes complete with operator’s manual.
Ordering Example: (1) STC-100-K-SMP-M Surface temperature connector, miniature male connector, Type K, €104.69
