High Temperature Cements

OMEGABOND™ Chemical SetCement Series

Thermally Conductive High Temperature Cements | OMEGABOND™ Chemical SetCement Series

Thermally Conductive High Temperature Cements

19,25 CC HIGH TEMP

  • Thermally Conductive
  • Thermal Shock Resistant
  • Electrical Insulator
  • Resists Oils, Solvents, Most Acids
  • Adheres to Practically All Clean Non-Porous Surfaces
  • Porous Surfaces May Require Dampening**
  • OMEGABOND™600 for Potting, Bonding, Embedding,Coating
  • OMEGABOND™ 700 for Coating, Assembling, Sealing
  • CC HIGH TEMPERATURE Cement for Attaching and/or Insulating Thermocouples for Temperature Measurement
Indicating Labels, Crayons, Cements and Lacquers - View related products

Description

high temperature cements cure by an internal chemical action which does not require exposure to air. Chemical Set thermal Cements can be used in thick applications (applied in thicknesses greater than 1/4")*.

SELECTION CRITERIA FOR CEMENTS
1. Type of Application –Potting, sealing, encapsulating, assembling, bonding. Is a thick or thin film of cement required? This dictates whether or not an air set or a chemical set cement can be used.
2. Thermal Considerations –What is the maximum temperature that the cement must withstand? What degree of thermal conductivity is needed? What degree of thermal expansion is allowed? These properties are then matched to the appropriate cement.
3. Solvent – 10% Sodium Hydroxide. However it’s difficult to remove cured cement.
4. Substrate – What materials will the cement be in contact with?

For complete product specifications see the Related Links section at the bottom of this page.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship

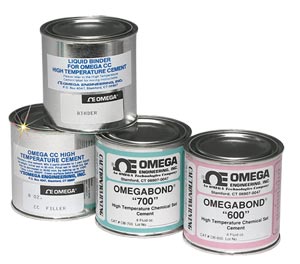

OB-600
39,50
Availability: 3 weeks

OMEGABOND™ 600 Powder, 8 fluid oz (one part cement; just mix with water)
Quick Ship
OB-700
39,50
Availability: 5 weeks

OMEGABOND™ 700 Powder, 8 fluid oz (one part cement; just mix with water)
Quick Ship
CC HIGH TEMP
19,25
Availability: 4 weeks

CC High Temperature Cement Kit, contains 2.25 oz powder and 0.75 oz liquid by weight
Quick Ship
CC Filler
40,00
Availability: 3 weeks

CC High Temperature Cement Powder, 8 oz by weight (Two part cement; mix liquid with CC Binder)
Quick Ship
CC Binder
40,50
Availability: 3 weeks

CC High Temperature Cement Liquid, 8 oz by weight (Two part cement; mix liquid with CC Filler)
Quick Ship
OB-KIT-2
59,00
Availability: 3 weeks

Chemical Set Cement Kit. Ideal for research purposes. Includes 2 fluid oz. each of OB-600 and OB-700 and also one CC High Temp Kit
Quick Ship
OB-TL
39,50
Availability: 3 weeks

OMEGABOND™ Thinning Liquid, 8 fluid oz used to dampen porous substrates before application of mixed OB-300 or OB-400 cements
All amounts shown in EUR
Note: * Air Set Cements are also available. See OMEGABOND™ 300, OMEGABOND™ 400 and OMEGABOND™ 500. These cements set or cure by air drying which requires that they be applied in thin layers.
** Porous substrates may require dampening before application of mixed cement. For OMEGABOND™ 600 and OMEGABOND™ 700 use OB-TL. For CC HIGH TEMPERATURE Cement use CC HIGH TEMPERATURE Cement liquid binder to dampen porous surfaces.
