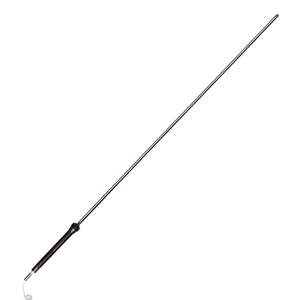

Temperature probe RTD PT100 with handle

PR-16

Temperature probe RTD PT100 | PR-16

Temperature probe RTD PT100

63,00 PR-16-2-M60-300

  • Temperature probe with Class A accuracy PT100 elements as standard
  • General purpose with easy-grip handle
  • Retractable extension lead wire - expands to 1.5m
  • European curve element, Alpha=0.00385, standard
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

Click on this link if you need more information about Pt100.

These economical PT100 temperature probes feature BS EN60751:1996 Class A accuracy thin film elements and have an easy grip handle with a coiled cable that expands to 1.5m. The standard probes are made with a rigid stainless steel tube sheath and have a measurement range of -30 to +250°C.

Standard construction is 3-wire, for pricing of 2 or 4 wire configurations and 1/3 or 1/10 DIN accuracy elements, contact our sales department.



Part Number
Measurement
Range
BS EN60751:1996
Accuracy Class
Sheath
Length mm
Sheath
Construction
PR-16-2-(*)-150
-30 to +250
A
150
Tube
PR-16-2-(*)-300
-30 to +250
A
300
Tube
PR-16-2-(*)-600
-30 to +250
A
600
Tube
*Specify: M30 or M60 for sheath diameter in 3.0 or 6.0 millimetres respectively.


Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for other available models.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
PR-16-2-M60-300
63,00
Availability: 3 weeks

Easy-Grip Handle Probe, PT100, 300mm Length, 6mm Diameter
Quick Ship
PR-16-2-M60-600
66,00
Availability: 5 weeks

Easy-Grip Handle Probe, PT100, 600mm Length, 6mm Diameter
Quick Ship
PR-16-2-M30-300
64,00
Availability: 1 week

Easy-Grip Handle Probe, PT100, 300mm Length, 3mm Diameter
Quick Ship
PR-16-2-M30-600
67,00
Availability: 4 weeks

Easy-Grip Handle Probe, PT100, 600mm Length, 3mm Diameter
All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Probe Diameter select from:
M30 for 3.0mm
M60 for 6.0mm

(2) Sheath Length select from:
150 for 150mm
300 for 300mm
600 for 600mm
Note: All combinations may not be valid, check spec sheet for valid part numbers.
