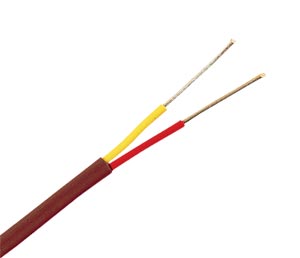

Thermocouple Wire Special Limits of Error

SLE Wire

^€58,71 TT-K-24-SLE-25

PLACE ORDER

Thermocouple Wire available from Stock!
"TT" PFA rated to 260°C (500°F)
"GG" fiberglass rated to 480°C (900°F)
Also Available with other insulations: Kapton ("KK"), PTFE Tape ("TFE"), FEP polymer ("FF"), High Temperature Fiberglass ("HH"), High Temperature Ceramic ("XC") or Silica Insulation ("XS").

Wire: Thermocouple, RTD, Thermistor and Hook-Up - View related products

Description

Find how a Thermocouple wire works on this link.

Special Limits of Error (SLE) Thermocouple wire available from stock in J, K, T, E and N calibrations in ready to use spool and coil lengths from 25 feet to 1000 feet! These SLE wires are available in a multitude of insulating jackets as well as protective metal overbraids.

Special Limits of Error for Thermocouple Accuracy*

AWG Wire Dimensions†

Thermocouple Type	Temperature Range		Special Limits of Error**
Thermocouple Type	°C	°F	Special Limits of Error**
T	0 to 350	(32 to 662)	±0.5°C or 0.4%
J	0 to 750	(32 to 1382)	±1.1°C or 0.4%
E	0 to 900	(32 to 1652)	±1.0°C or 0.4%
K	0 to 1250	(32 to 2282)	±1.1°C or 0.4%

AWG Number	Diameter
AWG Number	mm	Inches
20	0.81	(0.032)
24	0.51	(0.020)

*See page H-3 for complete ANSI and IEC Thermocouple accuracy table.
**Whichever is greater
†See page H-7 for complete AWG dimensions.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

GG-K-20-SLE-1000

€1.138,77

Availability: 1 week

1000 ft., Type K, 20 AWG, Fiberglass Insulated Thermocouple Wire, Special Limits of Error

GG-K-24-SLE-100

€133,88

Availability: 1 week

100 ft, Type K, 24 AWG, Fiberglass Insulated Thermocouple Wire, Special Limits of Error

TT-K-24-SLE-25

€58,71

Availability: 1 week

25 ft., Type K, 24 AWG, PFA Polymer Insulated Thermocouple Wire, Special Limits of Error

TT-J-24-SLE-1000

€772,53

Availability: 1 week

1000 ft., Type J, 24 AWG, PFA Polymer Insulated Thermocouple Wire, Special Limits of Error

GG-T-20-SLE-500

€491,45

Availability: 4 weeks

500 ft., Type T, 20 AWG, Fiberglass Insulated Thermocouple Wire, Special Limits of Error

TT-T-24-SLE-50

€79,57

Availability: 1 week

50 ft., Type T, 24 AWG, PFA Polymer Insulated Thermocouple Wire, Special Limits of Error

† All amounts shown in EUR

Part Number Builder

Build Your Part Number Below

(1)	(2)	(3)		(4)
			-SLE-

Option Descriptions:

(1) select from:
GG for Glass/Glass
TT for PFA

(2) Calibration select from:
-T for 0-350°C (32-662°F)
-J for 0-750°C (32-1382°F)
-E for 0-900°C (32-1652°F)
-K for 0-1250°C (32-2282°F)
-N for 270 to 1300°C (450 to 2372°F)

(3) AWG Number select from:
-20 for 0.81mm (0.032inch) Diameter
-24 for 0.51mm (0.020inch) Diameter

(4) Length select from:
25 for 7.5m (25ft)
50 for 15m (50ft)
100 for 30m (100ft)
200 for 60m (200ft)
500 for 150m (500ft)
1000 for 300m (1000ft)

Note: All combinations may not be valid, check spec sheet for valid part numbers.
