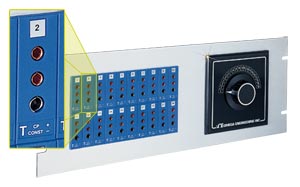

19 inch Jack Panels 3-Prong Connectors

19TJP Series

^€257,43 19TJP1-10-J

PLACE ORDER

Fully Assembled
Snap-In Jacks
Number Labels Included with Packaging
Easy Installation
Convenient
Rugged 1/8" Thick Panels

Thermocouple Connectors and Panel Systems - View related products

Description

19" Plain Panel Jacks

No.of Rows	Panel Height	Max. No. of Jacks
1	3 1/2"	22
2	5 1/4"	44
3	8 3/4"	66
4	10 1/2"	88

19" Panel Jacks with Switch Cutout

No.of Rows	Panel Height	Switch Size	Max. No. of Jacks
1	7"	5"	15
2	7"	5"	30
3	8 3/4"	5"	45
4	10 1/2"	5"	60

Most Popular Models Highlighted

Model No.	Total No. of Jacks	Switch Cutout	Meter Cutout
19TJP1-10-(*)	10	-	-
19TJP1-20-(*)	20	-	-
19TJP2-20-(*)	20	-	-
19TJP2-30-(*)	30	-	-
19TJP2-40-(*)	40	-	-
19TJP1-10-(*)-OSW	10	5"	-
19TJP2-20-(*)-OSW	20	5"	-
19TJP3-30-(*)-OSW	30	5"	-
19TJP4-40-(*)-OSW	40	5"	-
19TJP1-10-(*)-OSW-MTR	10	5"	Y
19TJP2-20-(*)-OSW-MTR	20	5"	Y
19TJP3-30-(*)-OSW-MTR	30	5"	Y
19TJP4-40-(*)-OSW-MTR	40	5"	Y

19" Jack Panels with Switch
and Meter Cutouts

No. of Rows	Panel Height	Switch Size	Max. No. of Jacks
1	7"	5"	10
2	7"	5"	20
3	8 3/4"	5"	30
4	10 1/2"	5"	40

Switches and Meters
Sold Separately

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Example part numbers are shown below. Please use the Part Number Builder below this table to select your exact configuration.

19TJP1-10-J

€257.43

Availability: 7 weeks

Jack Panel with 10 J Type Jacks(1 row of connectors)

19TJP1-10-K

€257.43

Availability: 7 weeks

Jack Panel with 10 K Type Jacks(1 row of connectors)

19TJP1-10-U

€257.43

Availability: 7 weeks

Jack Panel with 10 U Type Jacks(1 row of connectors)

19TJP1-20-K

€472.51

Availability: 7 weeks

Jack Panel with 20 K Type Jacks(1 row of connectors)

19TJP1-20-U

€472.51

Availability: 7 weeks

Jack Panel with 20 U Type Jacks(1 row of connectors)

19TJP2-20-K

€912.13

Availability: 7 weeks

Jack Panel with 20 K Type Jacks(2 rows of connectors)

19TJP2-30-K

€1,340.00

Availability: 7 weeks

Jack Panel with 30 K Type Jacks(2 rows of connectors)

19TJP2-30-T

€1,340.00

Availability: 7 weeks

Jack Panel with 30 T Type Jacks(2 rows of connectors)

19TJP2-40-E

€1,767.00

Availability: 7 weeks

Jack Panel with 40 E Type Jacks(2 rows of connectors)

19TJP2-40-K

€1,767.00

Availability: 7 weeks

Jack Panel with 40 K Type Jacks(2 rows of connectors)

19TJP2-40-U

€1,767.00

Availability: 7 weeks

Jack Panel with 40 U Type Jacks(2 rows of connectors)

19TJP1-10-J-OSW

Consult Sales

Availability:

Jack Panel with 10 J Type Jacks and Switch Cutout(1 row of connectors)

† All amounts shown in EUR

Part Number Builder

Build Your Part Number Below

	(1)		(2)		(3)	(4)	(5)
19TJP		-		-

Option Descriptions:

(1) Rows of Connectors select from:
1 for 1 Row
2 for 2 Rows
3 for 3 Rows
4 for 4 Rows

(2) Total Number of Jacks select from:
10 for 10 Jacks
12 for 12 Jacks
18 for 18 Jacks
20 for 20 Jacks
30 for 30 Jacks
32 for 32 Jacks
40 for 40 Jacks

(3) Connector Type select from:
J for J Type
K for K Type
T for T Type
E for E Type
R for R Type
S for S Type
G for G Type
C for C Type
D for D Type
U for U Type

(4) Optional Panel Switch Cutout select from:
Nothing(leave field blank) for No Panel Switch Cutout
-OSW for Panel Switch Cutout

(5) Optional Meter Cutout select from:
Nothing(leave field blank) for No Meter Cutout
-MTR for Meter Cutout

Note: All combinations may not be valid, check spec sheet for valid part numbers.
